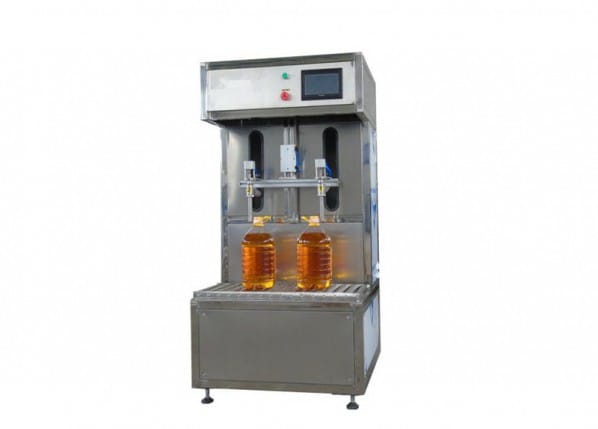

This type adopts linear filling, machine-electrical integrated control, superior performance, and its shape conforms to the international mechanical design concept. It is mainly suitable for quantitative filling of various oils.

It is widely used in:

1. Vegetable oil: soybean oil, peanut oil, cottonseed oil, tea oil, walnut oil, sesame oil, linseed oil, rapeseed oil, rice bran oil, salad oil, etc.

2. Chemical products: lubricating oil, engine oil, brake oil, gear oil, etc.

Ⅰ. Features

The two measurement methods of volume and mass can be freely switched.

Unique filling head design and vacuum suction system, no residual oil dripping during the filling process, fast and slow double-speed filling, and the filling speed is adjustable to prevent bottle overflow.

Power filling can be used, no high-position tank is required, which simplifies the installation process and improves the filling efficiency.

The touch screen has a friendly interface and simple operation. Taiwan Yonghong PLC control system has fast calculation speed and stable performance.

The pneumatic capping machine adopts the secondary capping technology, which effectively reduces the barrel expansion during the filling process of the medium barrel lubricating oil.

The electric and pneumatic parts are all high-quality components, and the whole machine operates stably.

Ⅱ. Technical Parameters

1. Number of filling nozzles: 2

2. Filling volume range: 1-20L

3. Production capacity: 240 barrels/hour (measured by 20L)

4. Filling accuracy: ≤0.1%

5. Adapter power supply: 50/60Hz 3N-380V±10%

6. Power of the whole machine: 1.5KW

7. Air source pressure: 0.4-0.8Mpa

8. Equipment size: length, width and height 800*900*1550mm
